| FTC Part #: | 22-26 |
| Price: | $589.00 |
| Core Charge?: | Does NOT Include fully refundable core charge of $250.00 |
| Make/Model: | 2013 - 2021 DODGE CHARGER 5.7L 2012 - 2021 DODGE RAM 1500 5.7L 2014 - 2014 JEEP WRANGLER 2.4L |
| Transmission: | ZF8HP70 |
| Diameter: | 10-5/8” DIAMETER, 5.570" OVERALL HEIGHT |
| Spline: | 32 INTERNAL SPLINE, 40 STATOR SPLINE, 26 BLADES |
| Pilot: | 1.335" DIAMETER, 1.020" LENGTH |
| Hub: | NO DRIVE ON HUB WITH INTERNAL SPLINES 53 INNER SPLINED 2.085" OD, 1.805" ID, 1.540" LONG |
| Mounting: | 11-1/16" MOUNTING PLATE 0.117" THICK RIVETED TO FRONT COVER WITH 6 LUG NUTS, 8 x 1.25 THREADS, 10-1/4" BOLT CIRCLE |
| Clutch: | CLUTCH PACK |
| ID Code: | C178, D178, K146 (SOME) 000323 METAL STAMP: (SOME) 000418 ON FRONT COVER PAINT CODE: BLUE DOT ON PUMP |
| Notes: | FIN ANGLE LOW, NO RING GEAR |
| Weight: | 35 |

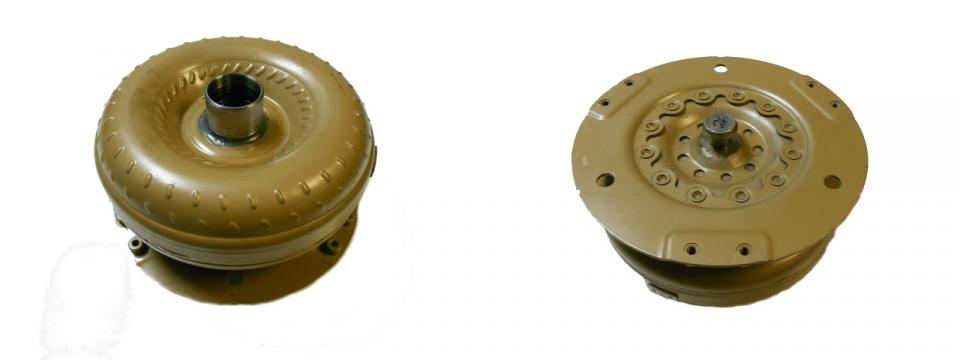

Torque Converter 22-26
