Best Darn Torque Converters in the World!
| FTC Part #: | 77-9495 |
| Price: | $439.00 |
| Core Charge?: | Does NOT Include fully refundable core charge of $100.00 |
| Make/Model: | 2014 - 2018 CHEVROLET CORVETTE 6.2L |
| Transmission: | 8L90 |
| Diameter: | 11.040" DIAMETER, 5.565" OVERALL HEIGHT |
| Spline: | 54 SPLINE, 27 BLADES, 36 INTERNAL SPLINE |
| Pilot: | 0.0825" DIAMETER, 1.245" LONG |
| Hub: | FLATS STEPPED WITH BUSHING, 2.305" OD, 1.435" LENGTH |
| Mounting: | RIVETED PLATE 6 ROUND PADS 9-1/4" BOLT CIRCLE |
| Clutch: | CAPTIVE HIGH CARBON |
| ID Code: | 24285995, 24264434, 24279496, 24279495, 24273061, 24290213, 16012 L-0G0040GP504, 160112213702, VS5 |
| Stall: | LOW |
| Notes: | FIN ANGLE LOW |
| Weight: | 42 |

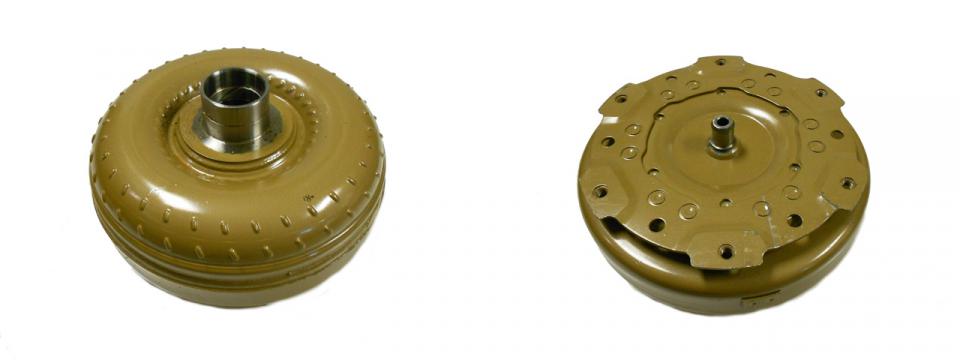

TORQUE CONVERTER 77-9495
Florida Torque Converter, 906 SE 9th Street, Cape Coral, FL 33990 USA
