Transmissions - Cadillac - 10L80

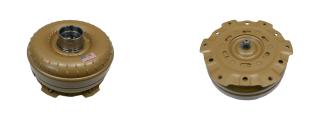

FTC Part #:	75-4123

Price:	$526.40
Core Charge:	Does NOT Include refundable core charge of $150.00
Make/Model:	2019 - 2022 CADILLAC CTS 2.0L
Transmission:	10L80
Diameter:	10" DIAMETER, 5.430" OAH
Spline:	41
Pilot:	0.825" DIAMETER, 1.013" LENGTH
Hub:	4 MILLED FLATS 2.760" OD, 1.561" LENGTH
Mounting:	RIVETTED PLATE TO FRONT COVER, 10M X 150 THREAD, 9-3/8" BOLT CIRCLE
Clutch:	CAPTIVE PAPER
ID Code:	242944123
Stall:	FIN ANGLE LOW
Weight:	35

FTC Part #:	77-4125

Price:	$684.60
Core Charge:	Does NOT Include refundable core charge of $150.00
Make/Model:	2019 - 2020 CADILLAC CT6 4.2L V8
Transmission:	10L80, 10L90
Diameter:	11-1/2" DIAMETER, 5.420" OVERALL HEIGHT
Spline:	41
Pilot:	0.823" DIAMETER, 0.849" LONG
Hub:	4 MILLED FLATS WITH INNER BUSHINGS, 2.764" OD, 1.422" LONG
Mounting:	6 LOG PLATE RIVETER TO FRONT COVER, M10 x 1.5 THREADS, 9-3/4" BOLT CIRCLE
Clutch:	CAPTIVE CLUTCH, PAPER
ID Code:	24294125
Notes:	FIN ANGLE SUPER LOW
Weight:	48

FTC Part #:	77-4619

Price:	$684.60
Core Charge:	Does NOT Include refundable core charge of $200.00
Make/Model:	2018 - 2022 CADILLAC ESCALADE ESV 6.2L 2022 - 2023 CHEVROLET SUBURBAN 5.3L 2022 - 2023 GMC SUBURBAN 5.3L
Transmission:	10L80
Diameter:	11-5/8" DIAMETER 6.190" OAH
Spline:	41
Pilot:	1.700" DIAMETER, 0.989" LENGTH
Hub:	4 FLATS WITH INNER BUSHING INSTALLED 2.7580" OD, 1.463" LENGTH
Mounting:	PLATE RIVETTED TP FRONT COVER WITH 6 LUGS M10 X 1.5 THREADS 11-1/2" BOLT CIRCLE
Clutch:	PAPER CAPTIVE FIN ANGLE LOW
ID Code:	24044619, 24049843
Weight:	46

FTC Part #:	77-9845

Price:	$684.60
Core Charge:	Does NOT Include refundable core charge of $200.00
Make/Model:	2018 - 2022 CADILLAC ESCALADE ESV 3.0L 2019 - 2022 CHEVROLET SILVERADO 1500 3.0L DIESEL 2019 - 2022 CHEVROLET SUBURBAN 3.0L DIESEL 2019 - 2023 CHEVROLET SUBURBAN 5.3L 2018 - 2023 GMC YUKON 5.3L
Transmission:	10L80
Diameter:
Spline:
Pilot:
Hub:
Mounting:
Clutch:
ID Code:	24049845, 24044900, 24292797
Weight:	46
