Best Darn Torque Converters in the World!
Transmissions - Ford - 10R80
Questions? Not sure what converter you need?
Please call Factory Toll Free 1-(800)-790-0039
| FTC Part #: | 37-10 |
 | |
| Price: | $939.00 |
| Core Charge: | Does NOT Include refundable core charge of $500.00 |
| Make/Model: | TBD |
| Transmission: | 10R80 |
| Diameter: | 13-1/4" DIAMETER, 8.350" OAH |
| Spline: | 48 |
| Pilot: | 1.372" DIAMETER, 0.700" LENGTH |
| Hub: | 3.000" LENGTH, 3.157" OD, SPLINED 87 TOOTH WITH BUSHING INSTALLED |
| Mounting: | 4 STUDS 3/8" X 24MM THREAD |
| Clutch: | CAPTIVE |
| Notes: | FIN ANGLE LOW |
| Weight: | 80 |

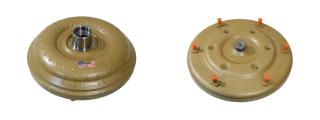

| FTC Part #: | 73-14-6 |
 | |
| Price: | $609.00 |
| Core Charge: | Does NOT Include refundable core charge of $150.00 |
| Make/Model: | 2015 -2021 FORD EDGE 2.7L |
| Transmission: | 10R80, 8F35, 8F57 |
| Diameter: | 11-1/2" DIAMETER 3.860" OAH |
| Spline: | 27 |
| Pilot: | 1.375" DIAMETER 0.866" LENGTH |
| Hub: | 2.060" OD, 1.500" LENGTH, FLATS WITH BUSHING |
| Mounting: | 6 STUDS M10 X 1.00 THREADS, 9.800" BOLT CIRCLE |
| Clutch: | CAPTIVE WOVEN |
| ID Code: | METAL STAMP: FG9P 7902 CB, K26D7902AB, BRZSEFOMOCO, PINK DOT |
| Stall: | FIN ANGLE LOW |
| Weight: | 30 |

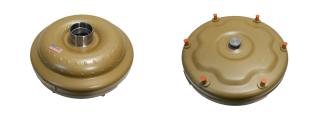

| FTC Part #: | 76-13 |
 | |
| Price: | $759.00 |
| Core Charge: | Does NOT Include refundable core charge of $200.00 |
| Make/Model: | 2018 - 2018 FORD F150 3.0L DIESEL |
| Transmission: | 10R80 |
| Diameter: | 12-3/4" DIAMETER, 4.900" OAH |
| Spline: | 41 |
| Pilot: | 1.372” DIAMETER, 0.643” LONG |
| Hub: | 4 FLATS WITH BUSHING INSTALLED, 2.760" OD, 1.528" LONG |
| Mounting: | 6 STUDS M10" X 1.0 THREADS 11” BOLT CIRCLE |
| Clutch: | ANGLE PISTON CLUTCH PAPER |
| Stall: | FIN ANGLE LOW |
| Weight: | 48 |
| FTC Part #: | 76-6 |
 | |
| Price: | $699.00 |
| Core Charge: | Does NOT Include refundable core charge of $250.00 |
| Make/Model: | 2017 - 2023 FORD EXPEDITION 3.5L, 5.0L 2020 - 2021 FORD EXPLORER 3.5L 2017 - 2022 FORD F-150 2.7L 2017 - 2023 FORD F-150 3.5L 2017 - 2017 FORD F-150 RAPTOR 3.5L 2017 - 2017 FORD F-150 4X2 3.5L TURBO 2017 - 2022 FORD F-150 4X4 5.0L 2020 - 2023 FORD POLICE INTERCEPTOR UTILITY 3.5L 2020 - 2023 FORD TRANSIT 150 3.5L 2020 - 2023 FORD TRANSIT 250 3.5L 2020 - 2023 FORD TRANSIT 350 3.5L 2020 - 2023 FORD TRANSIT 350 HD 3.5L 2018 - 2023 LINCOLN NAVIGATOR 3.5L |
| Transmission: | 10R80 |
| Diameter: | 12-3/4” DIAMETER, 4.890" OAH |
| Spline: | 41 |
| Pilot: | 1.375” DIAMETER 0.890” LONG |
| Hub: | 4 MILLED FLATS, 2.700" OD, 1.540" LONG |
| Mounting: | 4 STUDS M10 X 1.0 THREADS, 11-3/8” BOLT CIRCLE |
| Clutch: | YES |
| ID Code: | METAL STAMP: HL3PAD, 35416 044601, HL3PAE |
| Notes: | FIN ANGLE LOW |
| Weight: | 38 |
| FTC Part #: | 76-9 |
 | |
| Price: | $759.00 |
| Core Charge: | Does NOT Include refundable core charge of $200.00 |
| Make/Model: | 2019 - 2022 FORD RANGER XLT 2.3L |
| Transmission: | 10R60 |
| Diameter: | 12” DIAMETER, 5.120" OAH, 2.351" ID |
| Spline: | 41 SPLINE, 39 STATOR |
| Pilot: | 0.825" DIAMETER, 0.890” LONG |
| Hub: | 4 MILLED FLATS, 2.755" OD, 1.530" LONG WITH INNER BUSHINGS |
| Mounting: | 6 STUDS M10 X 1.0 THREADS, 9-7/16” BOLT CIRCLE |
| Clutch: | YES |
| ID Code: | JR3PMD 31417, KB3P |
| Notes: | SUPER LOW FIN ANGLE |
| Weight: | 42 |
