Best Darn Torque Converters in the World!
Transmissions - Chevrolet - 6L45, 6L50
Questions? Not sure what converter you need?
Please call Factory Toll Free 1-(800)-790-0039

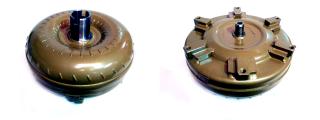

| FTC Part #: | 77-17 |
 | |
| Price: | $299.00 |
| Core Charge: | Does NOT Include refundable core charge of $100.00 |
| Make/Model: | 2008 - 2014 CADILLAC CTS 3.6L 2008 - 2011 CADILLAC STS 3.6L 2009 - 2011 CHEVROLET CAMARO 3.6L |
| Transmission: | 6L50E, 6L50 |
| Diameter: | 10-7/8” |
| Spline: | 27 |
| Pilot: | 0.825” |
| Hub: | 1.834” SLOTS |
| Mounting: | 3 MOUNTING PADS 10 X 1.50 THREADS ON 9-3/4” BOLT CIRCLE |
| Clutch: | YES - WOVEN |
| ID Code: | 24240017 |
| Weight: | 33 |

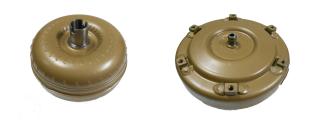

| FTC Part #: | 77-2928 |
 | |
| Price: | $439.00 |
| Core Charge: | Does NOT Include refundable core charge of $100.00 |
| Make/Model: | 2010 - 2011 CADILLAC CTS 3.0L, 3.6L 2015 - 2017 CHEVROLET COLORADO 3.6L 2015 - 2017 GMC CANYON 3.6L |
| Transmission: | 6L45, 6L50 |
| Diameter: | 11" DIAMETER, 6.090" OVERALL HEIGHT |
| Spline: | 27 SPLINE, 21 BLADES, 27 INTERNAL SPLINE |
| Pilot: | 0.825" DIAMETER, 0.945" LONG |
| Hub: | SLOTTED, 1.830" OD, 2.230" LONG |
| Mounting: | 6 PADS 0.530" (I/2"), 10 X 1.5 THREADS, 9-3/4" BOLT CIRCLE |
| Clutch: | WOVEN |
| ID Code: | METAL STAMP: 24252928, 00714, 190012 |
| Notes: | FIN ANGLE LOW |
| Weight: | 35 |

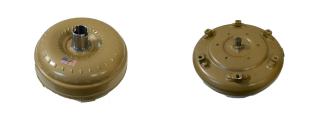

| FTC Part #: | 77-5605 |
 | |
| Price: | $549.00 |
| Core Charge: | Does NOT Include refundable core charge of $150.00 |
| Make/Model: | 2015 - 2019 CHEVROLET COLORADO 2.8L DIESEL 2015 - 2019 GMC CANYON 2.8L DIESEL |
| Transmission: | 6L50 |
| Diameter: | 12" DIAMETER, 6.220” OVERALL HEIGHT |
| Spline: | 27 |
| Pilot: | 0.825" DIAMETER, 1.070" LONG |
| Hub: | 1.830” OD, SLOTTED, 1.300" LONG |
| Mounting: | 6 PADS WELED TO FRONT COVER, 0.740" PAD HEIGHT, M10 X 1.50 THREADS, 9-1/4” BOLT CIRCLE |
| Clutch: | CAPTIVE |
| ID Code: | 24275605 |
| Notes: | FIN ANGLE LOW |
| Weight: | 48 |
| FTC Part #: | 77-5770 |
 | |
| Price: | $489.00 |
| Core Charge: | Does NOT Include refundable core charge of $150.00 |
| Make/Model: | 2013 - 2015 CADILLAC ATS 2.0L 2013 - 2016 CADILLAC ATS 2.5L 2013 - 2013 CADILLAC CTS 2.5L 2011 - 2022 CHEVROLET COLORADO 2.5L 2015 - 2022 GMC CANYON 2.5L |
| Transmission: | 6L45, 6L50 |
| Diameter: | 10-1/8” DIAMETER, OVERALL HEIGHT 6.040" |
| Spline: | 27 SPLINE, 19 BLADES, 27 INTERNAL SPLINE, 19 STATOR CODE |
| Pilot: | 0.825” DIAMETER, 1.340" LONG |
| Hub: | SLOTS, 1.835" OD, 2.220" LONG |
| Mounting: | TRIANGULAR PLATE RIVETED TO FRONT COVER, 3 PADS, M10 X 1.5 THREADS, 9-3/4” BOLT CIRCLE, 6 POINT MTG PLATE WITH 3 THREADED HOLES |
| Clutch: | CAPTIVE WOVEN |
| ID Code: | 24265771, 24265770, 24279757, 0315238805, 24288046, 24279758, 242657703431 |
| Stall: | Low |
| Notes: | FIN ANGLE VERY LOW |
| Weight: | 40 |
