FTC Part #: | 88-37 |
 |
Price: | $304.20 |
Core Charge: | Does NOT Include refundable core charge of $100.00 |

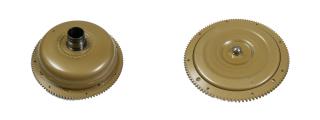

Make/Model: | 2014 - 2015 HONDA CIVIC 1.8L CVT |
Transmission: | CVT |
Diameter: | 9-1/2" DIAMETER, 3.590" OVERALL HEIGHT |
Spline: | 19 INTERNAL SPLINE |
Pilot: | 0.944" DIAMTER, 0.715" LONG |
Hub: | 1.970" / 1.785" OD, 1.520" LONG, SPLINED, 45 EXTERNAL SPLINE |
Mounting: | RING GEAR 8 HOLES 6MM X 1.0 THREADS ON 10-1/2" BOLT CIRCLE |
Clutch: | YES PAPER |
ID Code: | 52NYDM, R3WCYT, 4311407390, 7330813858
R3 BY HUB, R3MS AT DIMPLES |
Notes: | 113 TOOTH RING GEAR, 11-1/2" OD, 9-9/16" ID, 0.320" THICK, FIN ANGLE MEDIUM LOW |
Weight: | 26 |
