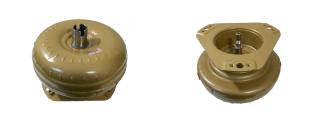

Transmissions - Audi - ZF8HP55AF

FTC Part #:	85-15

Price:	$462.40
Core Charge:	Does NOT Include refundable core charge of $200.00
Make/Model:	TBD
Transmission:	TBD
Diameter:	12" DIAMETER, 8.360" OAH
Spline:	27 INTERNAL SPLINE
Pilot:	0.627" DIAMETER, 3.800" LENGTH
Hub:	SLOTTED 1.770" OD, 2.110" LENGTH
Mounting:	EXTENDED TRIANGLE MOUNTING PLATE WITH 6 CAPTIVE NUTS, 10 X 24 THREADS, 10-1/4" BOLT CIRCLE
Clutch:	CAPTIVE
ID Code:	000000004 1680286 44 2 1025405636 ON FRONT COVER, 206700 ON PUMP
Stall:	FIN ANGLE LOW
Weight:	48

FTC Part #:	85-17

Price:	$430.40
Core Charge:	Does NOT Include refundable core charge of $150.00
Make/Model:	2010-2016 AUDI A4 Allroad (Turob) 2.0L 2015-2017 AUDI Q5 2.0L
Transmission:	ZF8HP55AF
Diameter:	10"
Spline:	32 SPLINE, 53 INTERNAL SPLINE
Pilot:	0.825"
Hub:	NO DRIVE SMOOTH WITH 53 SPLINES ON INSIDE
Mounting:	11-1/8" ACROSS CAKE DISH SHAPED RIVETED MOUNTING PLATE WITH 6 HOLES 10-1/8" BOLT CIRCLE
Clutch:	YES CLUTCH PACK
ID Code:	COVER: 464201008, BOTTOM: A138, Y137 METAL STAMP: A138 ON FRONT COVER INK CODE: 000000001087322451 51440115878 004444 P176 10873224528639 1 2014 11220267 H 300700004445 N176
Weight:	33
