Transmissions - VW - ZF5HP19

FTC Part #:	85-7H

Price:	$329.00
Core Charge:	Does NOT Include refundable core charge of $100.00
Make/Model:	2000 - 2006 AUDI A4 1.8L 1996 - 2002 AUDI A4 2.8L 1996 - 2001 AUDI A4 QUATTRO 2.8L 2000 - 2001 AUDI A6 2.8L 1998 - 2003 AUDI A6 QUATTRO 2.8L, 2.7L 2001 - 2001 AUDI S4 2.7L
Transmission:	ZF5HP19, ZF5HP19FLA, ZF5HP19FL
Diameter:	10 7/8"
Spline:	27
Pilot:	.629"
Hub:	1.772 SLOTS
Mounting:	3 PADS
Clutch:	YES
ID Code:	K28, M28, N24, F31 METAL STAMP: 156, 200, 156201, 156202
Stall:	HIGH STALL
Notes:	9 1/4” BOLT CIRCLE 10 X 1.00 THREADS
Weight:	27

FTC Part #:	85-8H

Price:	$399.00
Core Charge:	Does NOT Include refundable core charge of $100.00
Make/Model:	1998 - 2005 VOLKSWAGEN PASSAT 2.8L
Transmission:	ZF5HP19
Diameter:	11"
Spline:	27
Pilot:	.629” 1” LONG
Hub:	1.772” SLOTTED & STEPPED HUB
Mounting:	MOUNTING RING RETAINING 3 FLOATING NUTS 9 1/4” BOLT CIRCLE 10 X 1.00 THREADS
Clutch:	CLUTCH CAPTIVE
ID Code:	F35, 73, 49, 156201, 156208
Stall:	HIGH STALL
Weight:	30

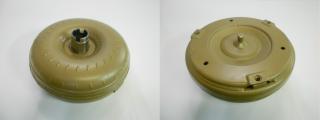

FTC Part #:	85-8L

Price:	$399.00
Core Charge:	Does NOT Include refundable core charge of $100.00
Make/Model:	1998-2004 AUDI A4 3.0L 1998-2004 AUDI A6 3.0L 1998-2004 AUDI A6 2.7L 2000-2002 AUDI S4 AVANT 2.7L 2002-2004 VOLKSWAGEN PASSAT 4.0L
Transmission:	ZF5HP19, ZF5HP19FLA
Diameter:	11"
Spline:	27
Pilot:	.629” 1” LONG
Hub:	1.772” SLOTTED & STEPPED HUB
Mounting:	MOUNTING RING RETAINING 3 FLOATING NUTS 9 1/4” BOLT CIRCLE 10 X 1.00 THREADS
Clutch:	CLUTCH CAPTIVE
ID Code:	761 METAL STAMP: 156208, 73, 49, 13, 40
Stall:	LOW STALL
Weight:	30

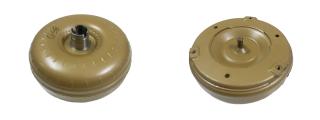

FTC Part #:	85-10

Price:	$439.00
Core Charge:	Does NOT Include refundable core charge of $150.00
Make/Model:	1998-2005 4.0L VOLKSWAGEN PASSAT
Transmission:	ZF5HP19
Diameter:	10-7/8”
Spline:	27
Pilot:	1.256” OD 1.460” LONG PILOT MOUNTING RING WITH 3 (10 X 1.00) THREADS
Hub:	SLOTTED
Mounting:	MTG RING 9 1/4” BOLT CIRCLE
Clutch:	CLUTCH CAPTIVE
ID Code:	INK CODE: Q56, B33, 156207 METAL STAMP: 156207
Stall:	LOW STALL
Weight:	30
