Transmissions - BMW - ZF6HP19, ZF6HP19X

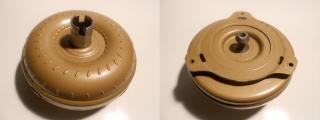

FTC Part #:	82-51

Price:	$439.00
Core Charge:	Does NOT Include refundable core charge of $150.00
Make/Model:	2004-2006 BMW 530i 3.0L
Transmission:	ZF6HP19
Diameter:	10 1/2”
Spline:	27
Pilot:	1.257”
Hub:	SLOTS
Mounting:	3 MOUNTING PADS ON 9 1/2” BOLT CIRCLE 10MM X 1.50 THREADS
Clutch:	YES CAPTIVE
ID Code:	METAL STAMP: G72, 75, 37, 209302, A9, A13, A24, F72, F90, Y81, 209303
Weight:	32

FTC Part #:	82-52

Price:	$439.00
Core Charge:	Does NOT Include refundable core charge of $150.00
Make/Model:	2003 - 2014 BMW 325i 3.0L 2000 - 2011 BMW 528i 3.0L 2004 - 2006 BMW 530i 3.0L 2007 - 2007 BMW Z4 3.0L
Transmission:	ZF6HP21, ZF6HP19
Diameter:	10 1/2”
Spline:	27
Pilot:	1.257” PILOT 1 3/8” LONG
Hub:	1.780” SLOTS
Mounting:	MOUNTING PLATE WITH 6 THREADED NUTS 10 X 1.50 THREADS 9 1/4” BOLT CIRCLE
Clutch:	YES CAPTIVE
ID Code:	62, Q60, Q90, V99, P116, F90, P90, 06A, V99 ,24239889, 24239880, 24243962, 24231685
Weight:	26

FTC Part #:	82-52S

Price:	$439.00
Core Charge:	Does NOT Include refundable core charge of $100.00
Make/Model:	2008 - 2011 HYUNDAI GENESIS 3.5L
Transmission:	ZF6HP19 / ZF6HP19X
Diameter:	10-1/2"
Spline:	27 SPLINE, 43 SPLINE STATOR
Pilot:	0.748", 1-5/16" LONG
Hub:	1.772" STEPPED & SLOTTED
Mounting:	MOUNTING PLATE WITH 6 THREADED NUTS ATTACHED, M10 X 1.25 THREADS, 9-7/16" BOLT CIRCLE
Clutch:	CAPTIVE CLUTCH, MODULATING
ID Code:	V119
Weight:	36

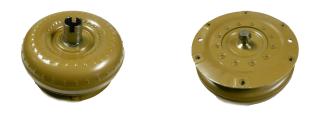

FTC Part #:	82-56S

Price:	$549.00
Core Charge:	Does NOT Include refundable core charge of $100.00
Make/Model:	2007 - 2012 BMW 335i 3.0L 2007 - 2012 BMW 535i 3.0L Twin Turbo 2009 - 2010 BMW X6 3.5L
Transmission:	ZF6HP19
Diameter:	10-1/2"
Spline:	27
Pilot:	1.257"
Hub:	SLOTS
Mounting:	6 HOLES
Clutch:	YES CAPTIVE
ID Code:	000236, B1, B3, 57, J99 ,24407584406
Notes:	10-1/8" ACROSS MOUNTING PLATE WTIH 6 10 X 1.50 THREADS, 1.772" STEPPED & SLOTTED HUB, 43 SPLINE STATOR, 9-1/4" BOLT CIRCLE, CONTAINS CLUTCH PACK WITH MULTIPLE MODULATING CLUTCH PLATES.
Weight:	35
