Transmissions - Cadillac - 5L40E

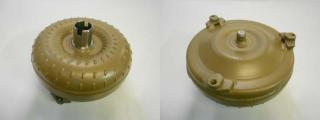

FTC Part #:	65-05

Price:	$214.20
Core Charge:	Does NOT Include refundable core charge of $100.00
Make/Model:	2001-2007 CADILLAC CTS 2.8L
Transmission:	5L40E
Diameter:	10"
Spline:	27
Pilot:	0.825", 0.960" LONG
Hub:	1.750" SLOTTED HUB 1.810" LONG
Mounting:	3 STEPPED MOUNTING PADS ON 9-3/4" BOLT CIRCLE WITH M1 X 1.50 THREADS
Clutch:	YES
ID Code:	METAL STAMP: 24222905, 24238771
Weight:	25

FTC Part #:	65-46

Price:	$214.20
Core Charge:	Does NOT Include refundable core charge of $100.00
Make/Model:	2003-2007 CADILLAC CTS 2.6L, 3.2L
Transmission:	5L40E
Diameter:	10-1/4"
Spline:	27
Pilot:	0.825 DIAMETER 1.500" LONG
Hub:	3 STEPPED MOUNTING PADS 1-1/8" TALL, M10 X 1.5 THREADS 9-1/2" BOLT CIRCLE, WOVEN CARBON 1.750" SLOTTED
Mounting:	3 PADS
Clutch:	CLUTCH TYPE UNIT YES, WOVEN
ID Code:	24216146
Weight:	25

FTC Part #:	77-95

Price:	$214.20
Core Charge:	Does NOT Include refundable core charge of $100.00
Make/Model:	2005 - 2007 CADILLAC 265 SRX 4.4L, 4.6L 2003 - 2007 CADILLAC CTS 3.6L 2004 - 2008 CADILLAC SRX 3.6L 2008 - 2010 PONTIAC G8 3.6L
Transmission:	5L40E, 5L50E
Diameter:	11"
Spline:	27
Pilot:	0.825"
Hub:	1.75"
Mounting:	3 PADS ON 9-3/4" BOLT CIRCLE
Clutch:	YES - WOVEN
ID Code:	24220895 , 24244351
Notes:	WOVEN GRAPHITE FRICTION MATERIAL
Weight:	31
