Transmissions - Cadillac - 6L50E

FTC Part #:	77-17

Price:	$299.00
Core Charge:	Does NOT Include refundable core charge of $100.00
Make/Model:	2008 - 2014 CADILLAC CTS 3.6L 2008 - 2011 CADILLAC STS 3.6L 2009 - 2011 CHEVROLET CAMARO 3.6L
Transmission:	6L50E, 6L50
Diameter:	10-7/8”
Spline:	27
Pilot:	0.825”
Hub:	1.834” SLOTS
Mounting:	3 MOUNTING PADS 10 X 1.50 THREADS ON 9-3/4” BOLT CIRCLE
Clutch:	YES - WOVEN
ID Code:	24240017
Weight:	33

FTC Part #:	77-18

Price:	$439.00
Core Charge:	Does NOT Include refundable core charge of $100.00
Make/Model:	2007 - 2011 CADILLAC STS 4.6L
Transmission:	6L50E
Diameter:
Spline:
Pilot:
Hub:
Mounting:
Clutch:
ID Code:	24240018
Weight:	25

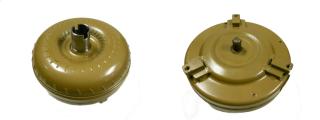

FTC Part #:	77-66

Price:	$439.00
Core Charge:	Does NOT Include refundable core charge of $100.00
Make/Model:	2007 - 2011 CADILLAC SRX 4.6L 2007 - 2011 CADILLAC STS 4.6L
Transmission:	6L50E
Diameter:	10-3/4”
Spline:	27
Pilot:	0.825”
Hub:	1.834” SLOTS
Mounting:	3 PADS ON 9.75" BOLT CIRCLE 10 X 1.50 THREADS
Clutch:	YES
ID Code:	24239066, 24240018
Stall:	LOW
Notes:	CAPTIVE CLUTCH RIVETED TO FRONT COVER
Weight:	32

FTC Part #:	77-7188

Price:	$439.00
Core Charge:	Does NOT Include refundable core charge of $150.00
Make/Model:	2008 - 2015 CADILLAC ATS 3.6L 2010 - 2012 CADILLAC CTS 3.0L 2008 - 2014 CADILLAC CTS 3.6L 2012 - 2015 CHEVROLET CAMARO 3.6L 2011 - 2017 CHEVROLET CAPRICE PPV 3.6L
Transmission:	6L45, 6L50
Diameter:	10-1/8" DIAMETER, 6.057" OVERALL HEIGHT
Spline:	27 SPLINE, 36 BLADES, 27 INTERNAL SPLINE
Pilot:	0.826" DIAMETER, 1.340" LONG
Hub:	SLOTTED 1.835" OD, 2.210" LONG
Mounting:	STAR-SHAPED MOUNTING PLATE WITH 6 PADS THREADED HOLES M10 X 1.5 THREADS ON 9-3/4" BOLT CIRCLE
Clutch:	CAPTIVE WOVEN
ID Code:	METAL & INK CODES: 24265773, 31312, 1633, L2 COVER STICKER: 2425 7188, 2426 4764, 2426 5772, 2426 5773, 2427 9759 TRANS CODE: AZA 19331052, 24240017, 24242552, 24249520, 24252928, 24262816, 24265772, 24269972, 24270603, 24279758, 24280384,24264764
Notes:	FIN ANGLE VERY LOW
Weight:	30
