Best Darn Torque Converters in the World!
Transmissions - Chevrolet - 6L80, 6L90
Questions? Not sure what converter you need?
Please call Factory Toll Free 1-(800)-790-0039

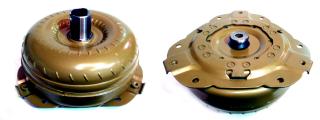

| FTC Part #: | 77-8442 |
 | |
| Price: | $489.00 |
| Core Charge: | Does NOT Include refundable core charge of $150.00 |
| Make/Model: | 2008-17 SILVERADO 4.3L 2014-18 SILVERADO 1500 4.3L 2009-17 SIERRA 1500 4.3L |
| Transmission: | 6L80 / 6L90 |
| Diameter: | 11” |
| Spline: | 36 SPLINE, 21 BLADES, 36 INTERNAL SPLINE |
| Pilot: | 1.700” DIAMETER, 0.900" LONG |
| Hub: | SLOTTED 1.832" OD, 1.375" ID |
| Mounting: | TRIANGLE PLATE RIVETED TO FRONT COVER WITH 3 ROUND PADS 3 (M10 X 1.5) THREADED HOLES, 11-3/8" BOLT CIRCLE |
| Clutch: | CAPTIVE CLUTCH |
| ID Code: | 24268442, 24279756, 24291284 |
| Stall: | Low |
| Weight: | 40 |

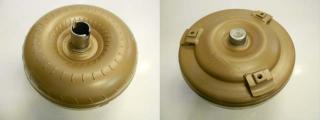

| FTC Part #: | 77-JMBV |
 | |
| Price: | $389.00 |
| Core Charge: | Does NOT Include refundable core charge of $150.00 |
| Make/Model: | 2008 - 2014 CHEVROLET CORVETTE 6.0L, 6.2L |
| Transmission: | 6L80E |
| Diameter: | 12 1/2" |
| Spline: | 36 |
| Pilot: | 1.703" |
| Hub: | SLOTS |
| Mounting: | 3 PADS, M10 X 1.5 THREADS 9-1/4” BOLT CIRCLE |
| Clutch: | Yes |
| ID Code: | JMBV, 24229277, 24234545, 24245966 |
| Weight: | 45 |
| FTC Part #: | 77-JMBX |
 | |
| Price: | $449.00 |
| Core Charge: | Does NOT Include refundable core charge of $150.00 |
| Make/Model: | 2006 - 2015 CADILLAC ESCALADE 6.0L, 6.2L 2012 - 2015 CHEVROLET CAMARO 6.2L 2006 - 2007 CHEVROLET CORVETTE 6.0L 2009 - 2018 CHEVROLET EXPRESS 2500 4.8L 2009 - 2018 CHEVROLET EXPRESS 3500 4.8L, 6.0L 2006 - 2016 CHEVROLET SILVERADO 6.0L 2013 - 2014 CHEVROLET SILVERADO 5.3L 2008 - 2017 CHEVROLET SILVERADO 1500 5.3L 2007 - 2013 CHEVROLET SILVERADO 2500-3500 HD 6.0L 2008 - 2011 CHEVROLET SUBURBAN 1500 / 2500 6.0L 2008 - 2015 CHEVROLET SUBURBAN 1500 HD 6.0L 2008 - 2013 CHEVROLET SUBURBAN 5.3L 2008 - 2018 CHEVROLET TAHOE 5.3L, 6.2L 2007 - 2013 GMC 2500-3500 HD 6.0L 2008 - 2011 GMC DENALI 6.2L 2008 - 2011 GMC SAVANA 3500 6.0L 2006 - 2015 GMC SIERRA DENALI 6.2L 2007 - 2013 GMC SIERRA 2500 6.0L 2007 - 2013 GMC SIERRA 3500 6.0L 2008 - 2018 GMC YUKON 5.3L, 6.2L 2012 - 2015 ISUZU NPR BOX TRUCK 6.0L 2008 - 2010 PONTIAC G8 6.0L |
| Transmission: | 6L80E, 6L80, 6L90 |
| Diameter: | 12-1/2” |
| Spline: | 36 SPLINE TURBINE 36 SPLINE STATOR |
| Pilot: | 1.703” |
| Hub: | 1.833 SLOTS |
| Mounting: | 3 STEPPED MOUNTING PADS WITH 10 X 1.50 THREADS
ON 11” BOLT CIRCLE LOCK-UP TYPE 3 PADS |
| Clutch: | YES WOVEN |
| ID Code: | 24234545, JMBX , 24247371 |
| Notes: | 77-JMBXSD IS RECOMMENDED DUE TO MANUFACTURER DESIGN FLAW THAT CAN CAUSE FAILURE IN STANDARD CONVERTER DUE TO MANUFACTURER DEFECTS WE CAN ONLY REPAIR CONVERTER NOT FIX. THERE IS NO WARRANTY. |
| Weight: | 45 |
| FTC Part #: | 77-JMBXSD |
 | |
| Price: | $659.00 |
| Core Charge: | Does NOT Include refundable core charge of $200.00 |
| Make/Model: | 2006 - 2015 CADILLAC ESCALADE 6.0L, 6.2L 2012 - 2015 CHEVROLET CAMARO 6.2L 2006 - 2007 CHEVROLET CORVETTE 6.0L 2009 - 2018 CHEVROLET EXPRESS 2500 4.8L 2009 - 2018 CHEVROLET EXPRESS 3500 4.8L, 6.0L 2006 - 2016 CHEVROLET SILVERADO 6.0L 2013 - 2014 CHEVROLET SILVERADO 5.3L 2008 - 2017 CHEVROLET SILVERADO 1500 5.3L 2007 - 2013 CHEVROLET SILVERADO 2500-3500 HD 6.0L 2008 - 2011 CHEVROLET SUBURBAN 1500 / 2500 6.0L 2008 - 2015 CHEVROLET SUBURBAN 1500 HD 6.0L 2008 - 2013 CHEVROLET SUBURBAN 5.3L 2008 - 2018 CHEVROLET TAHOE 5.3L, 6.2L 2007 - 2013 GMC 2500-3500 HD 6.0L 2008 - 2011 GMC DENALI 6.2L 2008 - 2011 GMC SAVANA 3500 6.0L 2006 - 2015 GMC SIERRA DENALI 6.2L 2007 - 2013 GMC SIERRA 2500 6.0L 2007 - 2013 GMC SIERRA 3500 6.0L 2008 - 2018 GMC YUKON 5.3L, 6.2L 2012 - 2015 ISUZU NPR BOX TRUCK 6.0L 2008 - 2010 PONTIAC G8 6.0L |
| Transmission: | 6L80, 6L90 |
| Diameter: | 12-1/2" |
| Spline: | 36 |
| Pilot: | 1.703" |
| Hub: | NON-FLANGED HUB 1.834" SLOTS |
| Mounting: | 3 STEPPED MOUNTING PADS, M10 x 1.5 THREADS, 11" BOLT CIRCLE |
| Clutch: | YES |
| ID Code: | (SOME JMBX) GRAY, GREEN, PURPLE, PINK, (SOME YELLO) STICKER 24230191, 24234544, 24236469, 24239789, 24243222, 24245963, 24245964 , 24247371 |
| Weight: | 47 |
| FTC Part #: | 77-JMBXTSD |
| |
| Price: | $1,519.00 |
| Core Charge: | Does NOT Include refundable core charge of $200.00 |
| Make/Model: | 2006 - 2015 CADILLAC ESCALADE 6.0L, 6.2L 2012 - 2015 CHEVROLET CAMARO 6.2L 2006 - 2007 CHEVROLET CORVETTE 6.0L 2009 - 2018 CHEVROLET EXPRESS 2500 4.8L 2009 - 2018 CHEVROLET EXPRESS 3500 4.8L, 6.0L 2006 - 2016 CHEVROLET SILVERADO 6.0L 2013 - 2014 CHEVROLET SILVERADO 5.3L 2008 - 2017 CHEVROLET SILVERADO 1500 5.3L 2007 - 2013 CHEVROLET SILVERADO 2500-3500 HD 6.0L 2008 - 2011 CHEVROLET SUBURBAN 1500 / 2500 6.0L 2008 - 2015 CHEVROLET SUBURBAN 1500 HD 6.0L 2008 - 2013 CHEVROLET SUBURBAN 5.3L 2008 - 2018 CHEVROLET TAHOE 5.3L, 6.2L 2007 - 2013 GMC 2500-3500 HD 6.0L 2008 - 2011 GMC DENALI 6.2L 2008 - 2011 GMC SAVANA 3500 6.0L 2006 - 2015 GMC SIERRA DENALI 6.2L 2007 - 2013 GMC SIERRA 2500 6.0L 2007 - 2013 GMC SIERRA 3500 6.0L 2008 - 2018 GMC YUKON 5.3L, 6.2L 2012 - 2015 ISUZU NPR BOX TRUCK 6.0L 2008 - 2010 PONTIAC G8 6.0L |
| Transmission: | 6L80, 6L90 |
| Diameter: | 12-1/2" |
| Spline: | 36 |
| Pilot: | 1.703" |
| Hub: | NON-FLANGED HUB 1.834" SLOTS |
| Mounting: | 3 STEPPED MOUNTING PADS, M10 x 1.5 THREADS, 11" BOLT CIRCLE |
| Clutch: | YES |
| ID Code: | (SOME JMBX) GRAY, GREEN, PURPLE, PINK, (SOME YELLO) STICKER 24230191, 24234544, 24236469, 24239789, 24243222, 24245963, 24245964 , 24247371 |
| Notes: | TRIPLE BILLET SUPER DUTY |
| Weight: | 55 |
Florida Torque Converter, 906 SE 9th Street, Cape Coral, FL 33990 USA
