Best Darn Torque Converters in the World!
Transmissions - Dodge - ZF8HP70
Questions? Not sure what converter you need?
Please call Factory Toll Free 1-(800)-790-0039

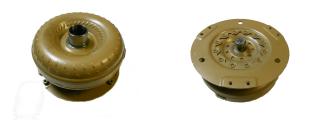

| FTC Part #: | 22-26 |
 | |
| Price: | $589.00 |
| Core Charge: | Does NOT Include refundable core charge of $250.00 |
| Make/Model: | 2013 - 2021 DODGE CHARGER 5.7L 2012 - 2021 DODGE RAM 1500 5.7L 2014 - 2014 JEEP WRANGLER 2.4L |
| Transmission: | ZF8HP70 |
| Diameter: | 10-5/8” DIAMETER, 5.570" OVERALL HEIGHT |
| Spline: | 32 INTERNAL SPLINE, 40 STATOR SPLINE, 26 BLADES |
| Pilot: | 1.335" DIAMETER, 1.020" LENGTH |
| Hub: | NO DRIVE ON HUB WITH INTERNAL SPLINES 53 INNER SPLINED 2.085" OD, 1.805" ID, 1.540" LONG |
| Mounting: | 11-1/16" MOUNTING PLATE 0.117" THICK RIVETED TO FRONT COVER WITH 6 LUG NUTS, 8 x 1.25 THREADS, 10-1/4" BOLT CIRCLE |
| Clutch: | CLUTCH PACK |
| ID Code: | C178, D178, K146 (SOME) 000323 METAL STAMP: (SOME) 000418 ON FRONT COVER PAINT CODE: BLUE DOT ON PUMP |
| Notes: | FIN ANGLE LOW, NO RING GEAR |
| Weight: | 35 |
| FTC Part #: | 22-30 |
 | |
| Price: | $519.00 |
| Core Charge: | Does NOT Include refundable core charge of $150.00 |
| Make/Model: | 2015 - 2019 DODGE CHALLENGER 6.4L 2015 - 2021 DODGE CHARGER 6.4L 2019 - 2022 RAM 2500 6.4L |
| Transmission: | ZF8HP70 |
| Diameter: | 10-5/8” DIAMETER, 5.570" OVERALL HEIGHT |
| Spline: | 32 INTERNAL SPLINE, 40 STATOR SPLINE, 26 BLADES |
| Pilot: | 1.810" DIAMETER, 1.360" LENGTH |
| Hub: | NO DRIVE ON HUB WITH INTERNAL SPLINES 53 INNER SPLINED 2.085" OD, 1.805" ID, 1.540" LONG |
| Mounting: | 11-1/16" MOUNTING PLATE 0.117" THICK RIVETED TO FRONT COVER WITH 6 LUG NUTS, 8 x 1.25 THREADS, 10-1/4" BOLT CIRCLE |
| Clutch: | CLUTCH PACK |
| ID Code: | C178, K146,(SOME) 000323 METAL STAMP: (SOME) 000418 ON FRONT COVER PAINT CODE: BLUE DOT ON PUMP, GREEN DOT ON PUMP |
| Notes: | FIN ANGLE LOW, NO RING GEAR |
| Weight: | 38 |

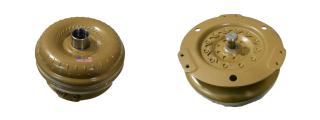

| FTC Part #: | 22-31 |
 | |
| Price: | $569.00 |
| Core Charge: | Does NOT Include refundable core charge of $150.00 |
| Make/Model: | 2013 - 2018 DODGE RAM 1500 3.0L DIESEL |
| Transmission: | ZF8HP70, 870RE, |
| Diameter: | 11.320” DIAMETER, 5.936" OVERALL HEIGHT |
| Spline: | 32 |
| Pilot: | 1.338" |
| Hub: | 53 SPLINE |
| Mounting: | PLATE WITH 3 PADS, 8MM x 1.25 THREADS, 10-1/4" BOLT CIRCLE |
| Clutch: | YES |
| ID Code: | S179 , 000429, 467 , |
| Weight: | 40 |

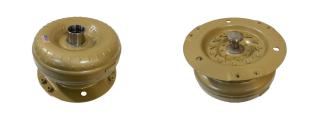

| FTC Part #: | 22-33 |
 | |
| Price: | $649.00 |
| Core Charge: | Does NOT Include refundable core charge of $150.00 |
| Make/Model: | 2018 - 2021 DODGE CHALLENGER 5.7L, 6.4L |
| Transmission: | ZF8HP70 |
| Diameter: | 10.5” DIAMETER, 6.150" OVERALL HEIGHT |
| Spline: | 32 INTERNAL SPLINE |
| Pilot: | 1.812" DIAMETER, 1.800" LENGTH |
| Hub: | 2.850" OD, 1.540" LENGTH |
| Mounting: | 6 ROUND PADS WITH M9 X 1.25 THREADS ON RIVETED PLATE TO FRONT COVER, 10-1/4" BOLT CIRCLE |
| Clutch: | CLUTCH PACK |
| Stall: | FIN ANLGE LOW |
| Weight: | 46 |
Florida Torque Converter, 906 SE 9th Street, Cape Coral, FL 33990 USA
