Best Darn Torque Converters in the World!
Transmissions - Ford - 6R80
Questions? Not sure what converter you need?
Please call Factory Toll Free 1-(800)-790-0039
| FTC Part #: | 82-75 |
 | |
| Price: | $489.00 |
| Core Charge: | Does NOT Include refundable core charge of $150.00 |
| Make/Model: | 2006-2010 FORD EXPLORER 4.6L 2006-2010 FORD EXPLORER, SPORT TRAC 4.6L 2008-2014 FORD F-150 4x2 4.6L 2006-2010 MERCURY MOUNTAINEER 4.6L |
| Transmission: | 6R60, 6R60/6R75, 6R80 |
| Diameter: | 12-1/2” PLATE |
| Spline: | 27 |
| Pilot: | 1.375” |
| Hub: | STEPPED SLOTTED |
| Mounting: | 10 X 1.00 THREADS ATTACHED TO .125” THICK MOUNTING
PLATE 11-3/8” BOLT CIRCLE 4 STUD |
| Clutch: | CLUTCH PACK |
| ID Code: | STAMPED: L904A BY PILOT 9L3P, 6L2P7902AF, 6L2P7902AK ON MOUNTING PLATE, 6L2P7922AF |
| Weight: | 38 |

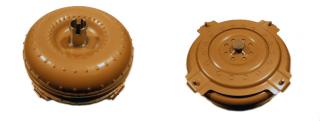

| FTC Part #: | 82-75B |
 | |
| Price: | $489.00 |
| Core Charge: | Does NOT Include refundable core charge of $150.00 |
| Make/Model: | 2011 - 2014 FORD F-150 3.5L, 5.0L |
| Transmission: | 6R75, 6R80, ZF6HP26 |
| Diameter: | 12" |
| Spline: | 32 SPLINE, 27 SPLINE STATOR |
| Pilot: | 1.375" |
| Hub: | 1.722" STEPPED AND SLOTTED HUB |
| Mounting: | MOUNTING PLATE RIVETED TO FRONT COVER WITH 4 STUDS, 10 x 1.0 THREADS, 11-3/8" BOLT CIRCLE |
| Clutch: | YES CONTAINS MULTI-PLATE MODULATING CAPTIVE CLUTCH |
| ID Code: | BL3PAB, BL3PAC, BL3PAD, BL3PAE |
| Notes: | 12-11/16" AT WIDEST POINT |
| Weight: | 38 |

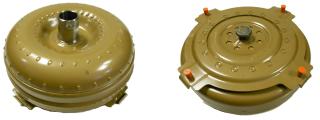

| FTC Part #: | 82-75C |
 | |
| Price: | $439.00 |
| Core Charge: | Does NOT Include refundable core charge of $150.00 |
| Make/Model: | 2015 - 2019 FORD F-150 5.0L 2014 - 2014 FORD F-150 ECOBOOST 3.5L |
| Transmission: | 6R80 |
| Diameter: | 11-7/8" |
| Spline: | 32 SPLINE, 27 SPLINE STATOR |
| Pilot: | 1.375" |
| Hub: | MILL FLATS |
| Mounting: | 12-11/16" MOUNTING PLATE RIVETED TO FRONT COVER WITH 4 STUDS, 10 x 1.0 THREADS, 11-7/16" BOLT CIRCLE |
| Clutch: | YES CAPTIVE CLUTCH |
| ID Code: | METAL STAMP: FL3PCC, FL3PCD |
| Weight: | 38 |
| FTC Part #: | 82-77 |
 | |
| Price: | $489.00 |
| Core Charge: | Does NOT Include refundable core charge of $150.00 |
| Make/Model: | 2008 - 2014 FORD EXPEDITION 5.4L 2008 - 2014 FORD F-150 5.4L 4x4 3V 2009 - 2009 FORD F-150 5.4L 2013 - 2013 FORD F-150 RAPTOR 6.2L 2010 - 2014 FORD MUSTANG 5.0L 2012 - 2017 LINCOLN NAVIGATOR 5.4L |
| Transmission: | 6R80 |
| Diameter: | 12" |
| Spline: | 32 SPLINE, 27 SPLINE STATOR |
| Pilot: | 1.375" |
| Hub: | 1.722" STEPPED AND SLOTTED HUB |
| Mounting: | 12.5" MOUNTING PLATE RIVETED TO FRONT COVER WITH 4 STUDS, 10 x 1.0 THREADS, 11-3/8" BOLT CIRCLE |
| Clutch: | YES CONTAINS MULTI-PLATE CAPTIVE CLUTCH |
| ID Code: | EGXRA, INK CODE: ORANGE SWATCH BY ONE STUD, METAL STAMP: B, BR3PBB, BR3PBC, 9L3PAA, 9L3PAF, 9L3PAG, 9L3PAH |
| Weight: | 45 |

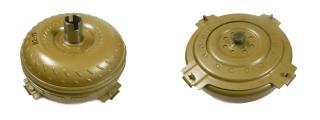

| FTC Part #: | 82-78 |
 | |
| Price: | $439.00 |
| Core Charge: | Does NOT Include refundable core charge of $150.00 |
| Make/Model: | 2011 - 2014 FORD F-150 3.7L 2011 - 2014 FORD MUSTANG 3.7L |
| Transmission: | 6R80 |
| Diameter: | 11 - 15/16" |
| Spline: | 32 |
| Pilot: | 1.375" |
| Hub: | SLOTS |
| Mounting: | 4 STUDS |
| Clutch: | YES |
| ID Code: | INK CODE: BR3PAB, BR3PAC, BL3PAD, BR3PEA |
| Notes: | 1.722" STEPPED AND SLOTTED HUB, 27 SPLINE STATOR 12 - 11/16" AT WIDEST POINT, 12.5" MOUNTING PLATE RIVETED TO FRONT COVER WITH 4 STUDS, 10 x 1.0 THREADS, 11 - 3/8" BOLT CIRCLE, CONTAINS MULTI-PLATE CAPTIVE CLUTCH, |
| Weight: | 33 |

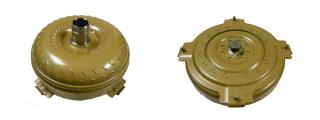

| FTC Part #: | 82-79 |
 | |
| Price: | $439.00 |
| Core Charge: | Does NOT Include refundable core charge of $150.00 |
| Make/Model: | 2015 - 2015 FORD MUSTANG 3.7L 2015 - 2017 FORD TRANSIT 250 3.7L |
| Transmission: | 6R80 |
| Diameter: | 12" |
| Spline: | 32 SPLINE, 27 SPLINE STATOR |
| Pilot: | 1.375" |
| Hub: | 1.722" STEPPED AND SLOTTED HUB |
| Mounting: | MOUNTING PLATE RIVETED TO FRONT COVER WITH 4 STUDS, 10 x 1.0 THREADS, 11-7/16" BOLT CIRCLE |
| Clutch: | MULTI-PLATE MODULATING CAPTIVE CLUTCH |
| ID Code: | INK CODE: BL3PAC, BL3PAD METAL STAMP: CK4PBB, EGXRA PAINT CODE: ORANGE SWATCH ON COVER |
| Notes: | 12 - 11/16" AT WIDEST POINT, 12.5" |
| Weight: | 38 |

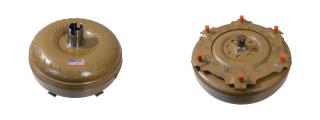

| FTC Part #: | 82-85 |
 | |
| Price: | $469.00 |
| Core Charge: | Does NOT Include refundable core charge of $200.00 |
| Make/Model: | 2016 - 2024 FORD RANGER 3.2L DIESEL |
| Transmission: | 6R80 |
| Diameter: | 11.346" DIAMETER, 6.020 OAH |
| Spline: | 32 |
| Pilot: | 1.101" DIAMETER |
| Hub: | SLOTTED |
| Mounting: | 6 STUDS 10 MM x 1.00 THREAD 9.45" BOLT CIRCLE |
| Clutch: | YES |
| ID Code: | METAL STAMP: AB3PAE |
| Notes: | EGXRA or L904 IS ON ALL 6R80 & 10R80's SO NOT LISTED AS CODE |
| Weight: | 42 |
