Transmissions - Ford - 8F35

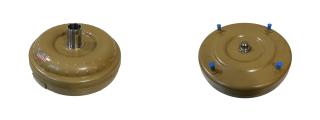

FTC Part #:	73-108

Price:	$478.40
Core Charge:	Does NOT Include refundable core charge of $150.00
Make/Model:	TBD
Transmission:	TBD
Diameter:	10-1/2" DIAMETER, 4.740" OAH
Spline:	24
Pilot:	0.823" DIAMETER, 0.689" LENGTH
Hub:	1.560" OD, 2.041" LENGTH, FLATS
Mounting:	4 STUDS 0.080" PAD HEIGHT, M10 X 1.0 THREADS, 8-7/8" BOLT CIRCLE
Clutch:
ID Code:	TC0010 (LUK)
Notes:	FIN ANGLE LOW
Weight:	30

FTC Part #:	73-13

Price:	$478.40
Core Charge:	Does NOT Include refundable core charge of $150.00
Make/Model:	2021 - 2024 FORD BRONCO SPORT 2.0L 2018 - 2024 FORD EDGE 2.0L 2020 - 2022 FORD ESCAPE 1.5L 2022 - 2024 FORD MAVERICK 2.0L 2019 - 2024 FORD TRANSIT CONNECT 2.0L, 2.5L 2020 - 2022 LINCOLN CORSAIR 2.0L
Transmission:	8F35
Diameter:	10-3/4" DIAMETER, 3.950" OAH
Spline:	20
Pilot:	0.820" DIAMETER, 0.800" LENGTH
Hub:	FLATS WITH BUSHING, 1.920" OD, 1.450" LENGTH
Mounting:	4 STUDS, 10 X 1.0 THREADS, 8-7/8" BOLT CIRCLE
Clutch:	ANGLE CLUTCH
ID Code:	JM5Z7902S, JM5Z7902H, JM5Z7902R JM5P NA / JM5P KA / JM5P KC / JM5P KD K, GXFZB GFXZB 18131 030079
Stall:	FIN ANGLE LOW
Weight:	31

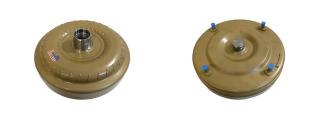

FTC Part #:	73-14

Price:	$340.20
Core Charge:	Does NOT Include refundable core charge of $150.00
Make/Model:	2017 - 2024 FORD ESCAPE 1.5L, 2.0L
Transmission:	8F35
Diameter:	10-3/4"
Spline:	26
Pilot:	1.375"
Hub:	1.920" OD, 1.450" LENGTH, FLATS WITH BUSHING
Mounting:	4 OVAL PADS STUDS M10 X 10 THREADS, 0.680" PAD HEIGHT
Clutch:	ANGLE CLUTCH
ID Code:	INK: S ON COVER, JMSP SB ON BOTTOM J1KP, JM5P SC GXFZB 21096 03 1958
Stall:	FIN ANGLE LOW
Weight:	30

FTC Part #:	73-15

Price:	$494.40
Core Charge:	Does NOT Include refundable core charge of $150.00
Make/Model:	2019 - 2021 FORD EDGE 2.7L
Transmission:	8F35
Diameter:	11-1/2" DIAMETER, 3.840" OAH
Spline:	27
Pilot:	1.375" DIAMETER, 0.882" LENGTH
Hub:	FLATS WITH BUSHING, 2.060" OD, 1.499" LENGTH
Mounting:	6 STUDS M10 X 1.0 THREADS 9-3/4" BOLT CIRCLE
Clutch:	CAPTIVE
ID Code:	JC
Stall:	FIN ANGLE LOW
Weight:	34
