Best Darn Torque Converters in the World!
Transmissions - Hyundai - A6LF1, A6MF2
Questions? Not sure what converter you need?
Please call Factory Toll Free 1-(800)-790-0039
| FTC Part #: | 42-KGD |
 | |
| Price: | $329.00 |
| Core Charge: | Does NOT Include refundable core charge of $100.00 |
| Make/Model: | 2015 - 2015 BUICK ELECTRA 1.8L 2012 - 2016 HYUNDAI ELANTRA 1.8L 2009 - 2023 HYUNDAI SONATA 2.0L 2010 - 2018 HYUNDAI SONATA 2.4L 2018 - 2021 HYUNDAI TUCSON 2.0L 2010 - 2013 KIA OPTIMA 2.4L 2012 - 2015 KIA SOUL 2.0L 2006 - 2012 MITSUBISHI ECLIPSE 3.8L |
| Transmission: | A6LF1, A6MF1, A6MF2, F5A51, A6GF1, AGMF1, JF506E |
| Diameter: | 10-3/16” DIAMETER, OVERALL HEIGHT: 4.075" |
| Spline: | 20 |
| Pilot: | 1.062” DIAMETER, 0.660" LENGTH |
| Hub: | 1.345" HEIGHT, 1.692" DIAMETER, SLOTTED |
| Mounting: | 4 OVAL PADS WITH 10MM X 1.25 THREADS, 0.435 Thick RING GEAR, RADIUS 8-3/4" |
| Clutch: | YES |
| ID Code: | INK CODE: KGD, KGF, KHE, KVC, NA, NC ON BOTH SIDES |
| Stall: | LOW STALL |
| Notes: | 110 TOOTH RING GEAR |
| Weight: | 28 |

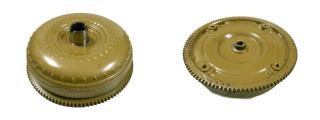

| FTC Part #: | 42-NA |
 | |
| Price: | $239.00 |
| Core Charge: | Does NOT Include refundable core charge of $100.00 |
| Make/Model: | 2010-2014 HYUNDAI SANTA FE 2.4L |
| Transmission: | A6MF2 |
| Diameter: | 10-1/4" DIAMETER, 3.950" OVERALL HEIGHT |
| Spline: | 38 SPLINE STATOR, 23 BLADES, 20 INTERNAL SPLINE |
| Pilot: | 1.090" DIAMETER, 0.430" LONG |
| Hub: | 1.690" OD, SLOTTED, 1.345" LONG, 1.340" HEIGHT |
| Mounting: | 4 OVAL PADS 0.400" TALL, 10 X 1.25 THREADS ON 8-3/4" BOLT CIRCLE |
| Clutch: | YES |
| ID Code: | INK STAMP BY PILOT AND PUMP NA |
| Stall: | LOW |
| Notes: | 110 TOOTH RING GEAR 11.065" OD, 9.416" ID, 0.440" THICK |
| Weight: | 28 |
| FTC Part #: | 42-NB |
 | |
| Price: | $269.00 |
| Core Charge: | Does NOT Include refundable core charge of $100.00 |
| Make/Model: | 2009 - 2014 HYUNDAI SONATA 2.4L |
| Transmission: | A6LF1 / A6MF2 |
| Diameter: | 10 1/4” |
| Spline: | 20 |
| Pilot: | 1.062” DIAMETER 0.690" LENGTH |
| Hub: | 1.345” Height 1.690" Diameter SLOTTED |
| Mounting: | 4 OVAL PADS WITH 10MM X 1.25 THREADS 110 TEETH RING GEAR RADIUS 8 3/4" |
| Clutch: | LOCK UP |
| ID Code: | INK CODE: NB |
| Stall: | LOW STALL |
| Notes: | OVERALL HEIGHT: 3.960" |
| Weight: | 28 |
| FTC Part #: | 42-ZA |
 | |
| Price: | $369.00 |
| Core Charge: | Does NOT Include refundable core charge of $100.00 |
| Make/Model: | 2009 - 2014 HYUNDAI SANTA FE 3.5L 2010 - 2015 KIA SEDONA 3.5L V6 |
| Transmission: | A6LF1, A6FL2, A6MF2, ZA |
| Diameter: | 11-1/8” |
| Spline: | 23 |
| Pilot: | 1.337” DIAMETER, HOLLOW PILOT .790” LONG |
| Hub: | 1.395” HEIGH, 1.850" DIAMETER, SLOTTED |
| Mounting: | 6 PADS WITH 10MM X 1.25 THREADS - 1/2" THICK ON 8-3/4" BOLT CIRCLE |
| Clutch: | YES LOCK UP |
| ID Code: | ZA, ZB, ZD,KDE, BLACK PAINT SWATCH BY ONE PAD |
| Stall: | LOW STALL |
| Notes: | OVERALL HEIGHT: 3.840" |
| Weight: | 28 |
