Transmissions - Mini - AWTF60SN, 09G

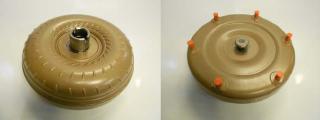

FTC Part #:	99-16

Price:	$334.40
Core Charge:	Does NOT Include refundable core charge of $100.00
Make/Model:	2005 - 2015 MINI COOPER S TYPE 1.6L
Transmission:	AWTF60SN/09G
Diameter:	10-1/2"
Spline:	20
Pilot:	1.337"
Hub:	1.722" SLOTS
Mounting:	6 STUDS
Clutch:	YES
ID Code:	46A100
Notes:	6 STUDS ON 9-1/4" BOLT CIRCLE WITH 3/8 x 24 THREADS, CLUTCH TYPE UNIT
Weight:	36

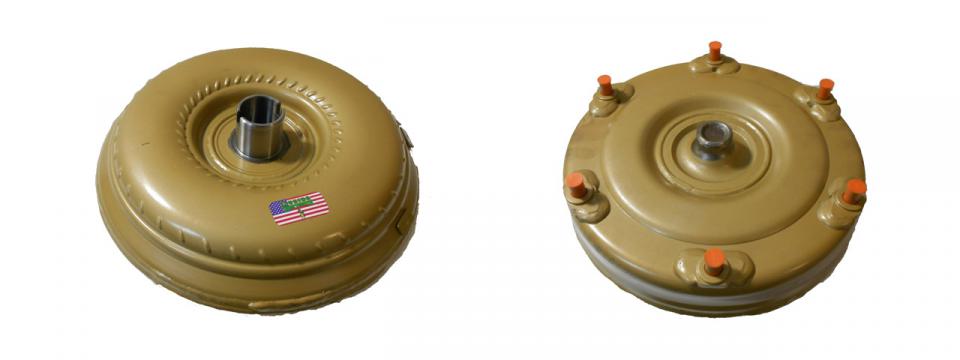

FTC Part #:	99-17

Price:	$214.20
Core Charge:	Does NOT Include refundable core charge of $150.00
Make/Model:	2006 - 2009 MINI COOPER NON-TURBO 1.8L 2002 - 2009 MINI COOPER 1.6L 2019 - 2019 VOLKSWAGON GOLF 1.4L 2019 - 2019 VOLKSWAGON GOLF SPORTWAGON 1.4L 2019 - 2019 VOLKSWAGON JETTA 1.4L, 2.0L
Transmission:	AWTF60SN/09G, CVT / CFT25/27, 09S
Diameter:	10-1/2" DIAMETER, 4.460" OAH
Spline:	20
Pilot:	0.825" DIAMETER, 0.810" LENGTH
Hub:	2.032" OD SLOTTED 2.000" LENGTH
Mounting:	6 STUDS WELDED TO FRONT COVER, M10 X 10 THREADS, 9-1/4" BOLT CIRCLE
Clutch:
ID Code:	46A130, INK CODE: QAHE 095 323 571
Stall:	FIN ANGLE LOW
Notes:	NO RING GEAR, 0.480" THICK
Weight:	36
