Best Darn Torque Converters in the World!
Transmissions - Mitsubishi - TBD
Mitsubishi Torque Converters with transmission and applications not yet identified.Questions? Not sure what converter you need?
Please call Factory Toll Free 1-(800)-790-0039

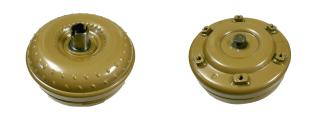

| FTC Part #: | 42-45 |
 | |
| Price: | $439.00 |
| Core Charge: | Does NOT Include refundable core charge of $150.00 |
| Make/Model: | 2009 - 2011 HYUNDAI GENESIS 3.8L 2012 - 2012 HYUNDAI GENESIS 5.0L MITSUBISHI MODEL TBD |
| Transmission: | TB60SN |
| Diameter: | 11-1/8”, 5.480" OVERALL HEIGHT |
| Spline: | 20 INTERNAL SPLINE |
| Pilot: | 1.337” DIAMETER, 0.880" LONG |
| Hub: | 1.730" OD, 1.870" LENGTH, SLOTTED |
| Mounting: | 6 OVAL PADS 0.520" TALL, 10 X 1.25 THREADS, 8-7/8" BOLT CIRCLE |
| Clutch: | CAPTIVE CLUTCH |
| ID Code: | INK CODE: LK METAL STAMP: LK4F06T111029103122 |
| Notes: | FIN ANGLE LOW |
| Weight: | 38 |
| FTC Part #: | 42-KNC |
 | |
| Price: | $319.00 |
| Core Charge: | Does NOT Include refundable core charge of $100.00 |
| Make/Model: | 2012-2017 HYUNDAI ACCENT 1.6L 2012-2016 HYUNDAI ELANTRA 1.8L 2011-2018 KIA RIO 1.4L, 1.6L 2012-2018 KIA SOUL 1.6L |
| Transmission: | A6GF1, A6MF1 |
| Diameter: | 10-1/8" DIAMETER, 3.985" OVERALL HEIGHT |
| Spline: | 20 INTERNAL SPLINE, 38 SPLINE STATOR |
| Pilot: | 1.060" HOLLOW, 0.727" LONG |
| Hub: | 1.690" DIAMETER, 1.355" HEIGHT, SLOTS, FLANGED |
| Mounting: | 4 OVAL PADS M10 X 1.25 THREADS ON 8-3/4" BOLT CIRCLE |
| Clutch: | YES |
| ID Code: | INK STAMP BY PILOT AND PUMP KNC |
| Notes: | 10-5/8'' ACROSS 127 TOOTH RING GEAR. |
| Weight: | 33 |

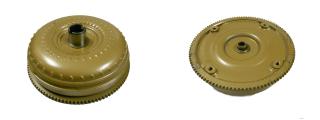

| FTC Part #: | 42-PC |
 | |
| Price: | $319.00 |
| Core Charge: | Does NOT Include refundable core charge of $100.00 |
| Make/Model: | MITSUBISHI MAKE & MODEL TBD |
| Transmission: | TBD |
| Diameter: | 10-5/16" DIAMETER, 3.985" OVERALL HEIGHT |
| Spline: | 20 INTERNAL SPLINE, 38 SPLINE STATOR |
| Pilot: | 1.058" DIAMETER, 0.410" LENGTH, HOLLOW |
| Hub: | 1.690" DIAMETER, 1.350" HEIGHT, SLOTTED, FLANGED |
| Mounting: | 4 OVAL PADS WITH M10 X 1.25 THREADS ON 8-3/4" BOLT CIRCLE |
| Clutch: | MULTI-CLUTCH |
| ID Code: | INK STAMP BY PILOT AND PUMP PC |
| Stall: | LOW |
| Notes: | 11-1/16'' ACROSS 110 TOOTH RING GEAR. |
| Weight: | 33 |
| FTC Part #: | 93-22D |
 | |
| Price: | $379.00 |
| Core Charge: | Does NOT Include refundable core charge of $100.00 |
| Make/Model: | 2018 MITSUBISHI LANCER 2.0L |
| Transmission: | TBD |
| Diameter: | 10-7/16" |
| Spline: | 20 |
| Pilot: | 1.337" |
| Hub: | FLANGED & STEPPED HUB WITH 2 DRIVE EARS WITH INNER BUSHING |
| Mounting: | 4 OVAL MOUNTING PADS ON 9" BOLT CIRCLE, M10 X 1.25 THREADS |
| Clutch: | YES |
| ID Code: | 22D, 22H |
| Stall: | LOW STALL RIB ANGLE |
| Weight: | 33 |
