Transmissions - Subaru - CVT

FTC Part #:	69-170

Price:	$340.20
Core Charge:	Does NOT Include refundable core charge of $150.00
Make/Model:	2010 - 2015 SUBARU LEGACY 2.5L NON-TURBO
Transmission:	CVT
Diameter:	4.295" OVERALL HEIGHT
Spline:	33 SPLINE STATOR, 23 INTERNAL SPLINE
Pilot:	0.625" DIAMETER, 0.660" LONG
Hub:	1.865" OD, 1.595" ID, 1.525" LONG, MILLED FLATS
Mounting:	4 HOLES, 11-3/16" BOLT CIRCLE
Clutch:	PAPER
ID Code:	INK CODE: 170, 172, 240, 350, 352
Stall:	MEDIUM STALL
Notes:	115 TOOTH RING GEAR, 0.365" THICK
Weight:	38

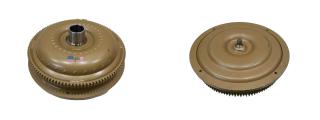

FTC Part #:	69-290

Price:	$340.20
Core Charge:	Does NOT Include refundable core charge of $100.00
Make/Model:	TBD
Transmission:	CVT
Diameter:	4.34" OVERALL HEIGHT
Spline:	33 SPLINE STATOR, 20 BLADES, 23 INTERNAL SPLINE
Pilot:	0.625" DIAMETER, 0.660" LONG
Hub:	1.865" OD, 1.555" LONG, MILLED FLATS
Mounting:	4 HOLES ON RUNG 11-1/8" BOLT CIRCLE
Clutch:	PAPER
ID Code:	INK CODE: 290
Stall:	HIGH STALL
Notes:	115 TOOTH RING GEAR, 0.365" THICK
Weight:	32

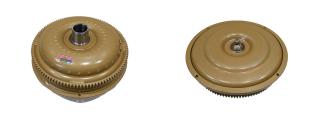

FTC Part #:	69-390

Price:	$494.40
Core Charge:	Does NOT Include refundable core charge of $150.00
Make/Model:	2013 - 2015 SUBARU XV CROSSTREK 2.0L
Transmission:	CVT TR580
Diameter:	11-1/4" DIAMETER, 4.370" OAH
Spline:
Pilot:	0.650" DIAMETER, 0.630" LENGTH
Hub:	1.866" OD, 1.550" LONG, MILLED FLATS
Mounting:	12-1/4" RING WELDED TO FRONT COVER WITH 4 THREADED HOLES, 8MM THREADS, 11-3/4" BOLT CIRCLE
Clutch:
ID Code:	INK CODE: 390, 391
Notes:	FIN ANGLE HIGH, 115 RING GEAR TOOTH
Weight:	34
