Transmissions - Toyota - U140E

FTC Part #:	89-53

Price:	$269.00
Core Charge:	Does NOT Include refundable core charge of $100.00
Make/Model:	1994 - 2001 Lexus ES300 3.0L 1994 - 2004 Toyota Camry 3.0L 1998 - 2000 Toyota Sienna 3.0L
Transmission:	A-541E, A541E, U140E, A-540E
Diameter:	11 1/2"
Spline:	26
Pilot:	1.257"
Hub:	1.500" Slots
Mounting:	6 Pads 9mm 9 5/8” BOLT CIRCLE
Clutch:	Yes
ID Code:	L
Notes:	REDUCED PRIMARY
Weight:	30

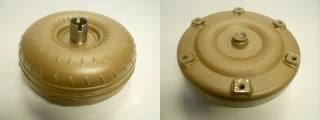

FTC Part #:	89-75L

Price:	$269.00
Core Charge:	Does NOT Include refundable core charge of $100.00
Make/Model:	2002 - 2004 TOYOTA CAMRY 2.4L 2001 - 2007 TOYOTA HIGHLANDER 2.4L 2000 - 2008 TOYOTA RAV 2.4L 2009 - 2012 TOYOTA RAV4 2.5L
Transmission:	U140E, U140F, U241E
Diameter:	10 3/8”
Spline:	26 38 SPLINE STATOR
Pilot:	1.257”
Hub:	1.500” SLOTS
Mounting:	9MM X 1.25 THREADS .390" THICK PADS 8 15/16” BOLT CIRCLE 6 PADS
Clutch:	YES
ID Code:	INK CODE: 11, 17, 21 METAL STAMP: 16U BY PILOT
Stall:	LOW STALL
Weight:	24

FTC Part #:	89-82

Price:	$249.00
Core Charge:	Does NOT Include refundable core charge of $100.00
Make/Model:	2002-2003 LEXUS ES300 3.0L 2004-2006 LEXUS ES330 3.3L 2004-2006 LEXUS RX330 3.3L 1999-2008 TOYOTA CAMRY 3.0L, 3.3L 2001-2003 TOYOTA HIGHLANDER 3.0L 2004-2007 TOYOTA HIGHLANDER 3.3L 2004-2013 TOYOTA HIGHLANDER 3.5L 2006-2012 TOYOTA RAV4 3.5L 2001-2003 TOYOTA SIENNA 3.0L 2004-2007 TOYOTA SIENNA 3.3L, 3.5L 1999-2003 TOYOTA SOLARA 3.0L
Transmission:	U150E, U151E, U151F, A541E, U140E, A-541E, A540E
Diameter:	11 1/4”
Spline:	26 38 SPLINE STATOR
Pilot:	1.257”
Hub:	1.500" SLOTS
Mounting:	6 PADS, 0.290" TALL, 9MM, 9-5/8" BOLT CIRCLE
Clutch:	YES
ID Code:	INK STAMP: 01, 02, 04 METAL STAMP: 0203291342, 020607927
Stall:	LOW STALL
Notes:	LOW STALL FIN ANGLE
Weight:	28
